Tapered Roller 15.15x20.365x8°

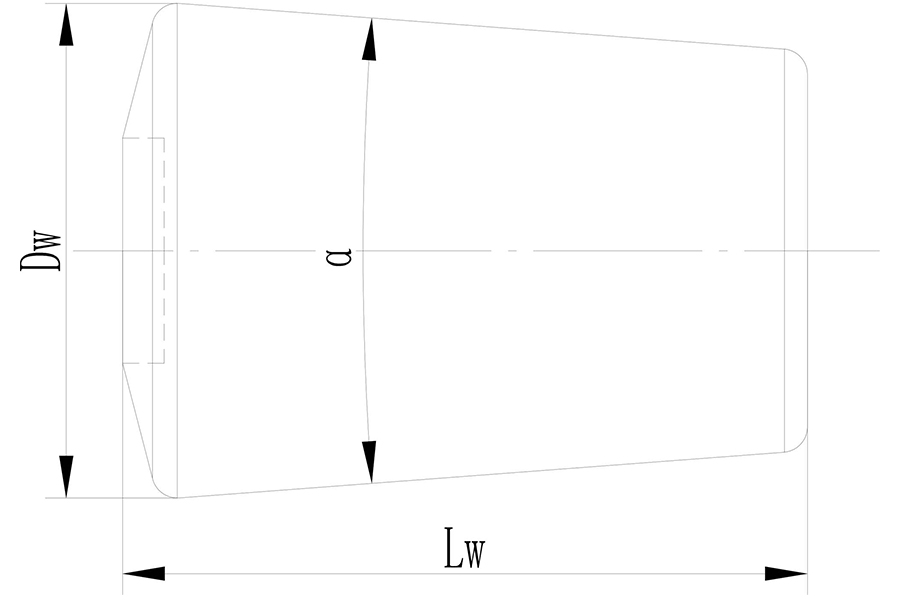

- Diameter (Dw)
- 15.15 mm
- Length (Lw)
- 20.365 mm
- Mass
- 0.02300 kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
테이퍼 롤러 Seris - Tapered Roller 15.15x20.365x8°
Diameter (Dw) :
15.15 mm
Length (Lw) :
20.365 mm
Mass :
0.02300 kg
α :
8°
Material :
52100
Hardness :
Rockwell C60
Heat treatment :
Hardened
Material composition aluminum :
0-0.050%
Material composition carbon :
0.93-1.10%
Material composition chromium :
1.30-1.60%
Material composition copper :
0-0.30%
Material composition manganese :
0.25-0.45%
Material composition molybdenum :
0-0.10%
Material composition nickel :
0-0.25%
Material composition oxygen :
0-0.0015%
Material composition phosphorus :
0.025% Max.
Material composition silicon :
0.15-0.35%
Material composition sulfur :
0.025% Max.
Material composition iron :
Remainder
Rohs :
Compliant
Reach :
Compliant
Description
Features & Benefits
테이퍼 롤러는 일반적으로 롤러의 큰 끝의 직경의 두 배를 넘지 않습니다. 이러한 롤러는 주로 테이퍼 롤러 베어링에 사용되고, 큰 원뿔 각도를 가진 롤러는 기본적으로 추력 테이퍼 롤러 베어링에 사용됩니다.
